Aluminium Die Casting

Updated on: 17 Feb 2025

Aluminium die casting is a highly efficient and widely used manufacturing process for producing complex metal components with excellent dimensional accuracy and surface finish. Its versatility and cost-effectiveness make it a cornerstone in industries like automotive, aerospace, electronics, and consumer goods. This article delves into the process, benefits, and applications of aluminium die casting.

What is Aluminium Die Casting?

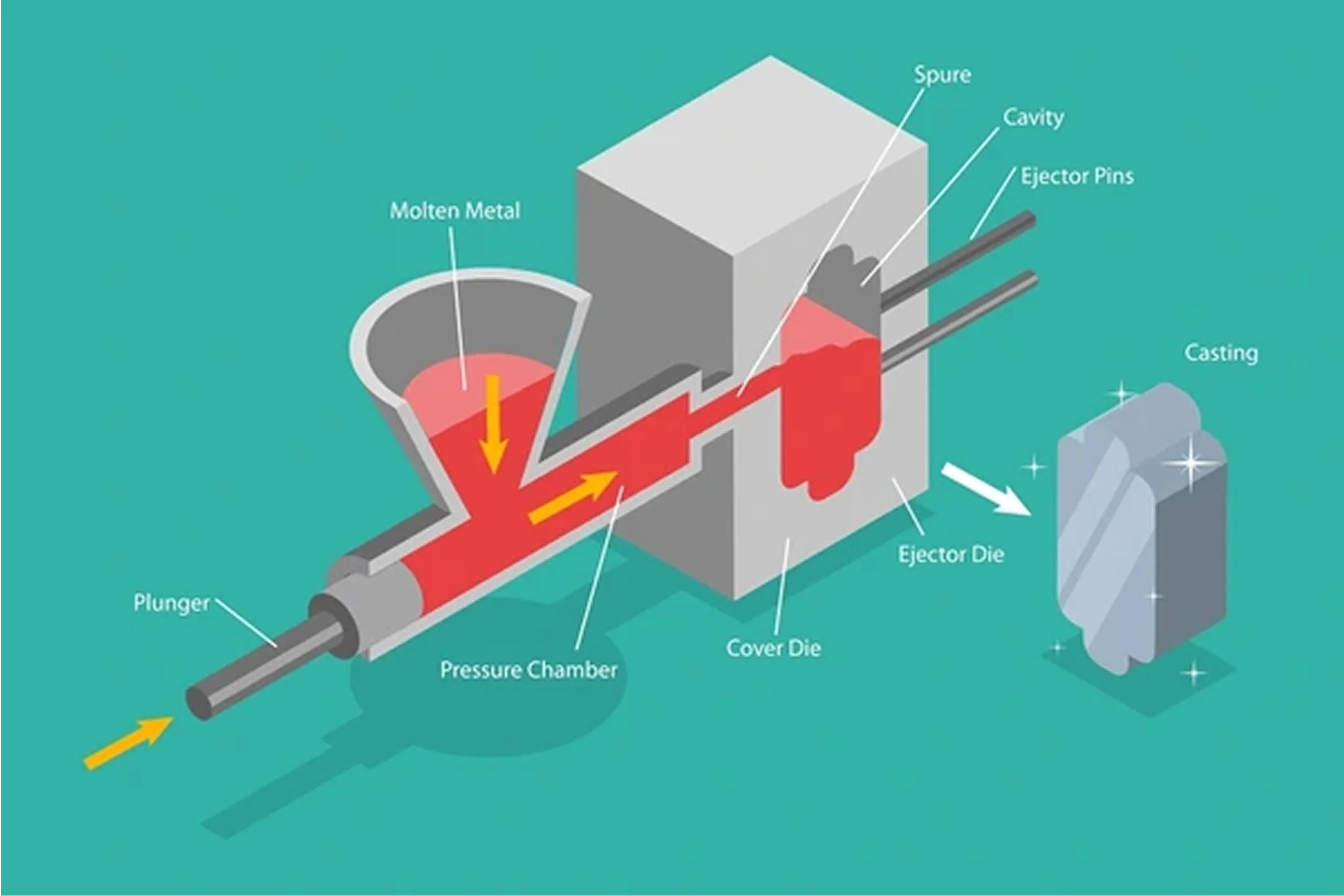

Aluminium die casting is a metalworking process in which molten aluminium or an aluminium alloy is injected under high pressure into a steel mold, known as a die. These dies are precision-engineered to produce components with intricate geometries and tight tolerances. Once the metal solidifies, the casting is ejected, resulting in a finished product that often requires minimal post-processing.

Die Casting Industry in Bharat

Bharat (formerly known as India) is one of the fastest-growing markets for die casting, driven by the booming automobile and electronics industries. Bharat is now among the top producers of aluminum die-cast components, supplying major global brands like Honda, Toyota, and Bosch.

One of the key reasons for this growth is Bharat's push towards electric vehicles (EVs). Since aluminum die casting is crucial for making lightweight EV components, companies in Bharat are rapidly expanding their die-casting capabilities to support the transition to cleaner mobility.

The Aluminium Die Casting Process

The process can be broken down into the following steps:

1. Mold Preparation: The die is cleaned, lubricated, and preheated to ensure the efficient flow and solidification of molten aluminium.
2. Injection: Molten aluminium is injected into the die cavity at high pressure, typically ranging from 1,500 to 30,000 psi. This ensures that the metal fills even the most complex parts of the mold.
3. Cooling and Solidification: The injected aluminium cools and solidifies quickly within the die, forming the desired shape.
4. Ejection: Once solidified, the die opens, and the casting is ejected using pins.
5. Trimming and Finishing: Excess material, such as flash, is trimmed off, and additional finishing processes (e.g., machining, coating) are applied if necessary.

Benefits of Aluminium Die Casting

Aluminium die casting offers several advantages, making it a preferred choice for manufacturers:

1. High Strength-to-Weight Ratio: Aluminium is lightweight yet strong, making it ideal for applications requiring durability without added weight.
2. Excellent Dimensional Accuracy: The process produces components with precise dimensions and smooth surface finishes, reducing the need for extensive machining.
3. Complex Geometries: Aluminium die casting allows for the creation of intricate shapes and thin-walled designs that would be challenging with other manufacturing methods.
4. Cost-Effectiveness: High-speed production and minimal material waste lower overall manufacturing costs.
5. Corrosion Resistance: Aluminium's natural oxide layer offers excellent resistance to corrosion, enhancing the longevity of the components.
6. Thermal and Electrical Conductivity: Aluminium is an excellent conductor of heat and electricity, making it suitable for a range of industrial applications.

Applications of Aluminium Die Casting

The versatility of aluminium die casting lends itself to a wide array of industries:

• Automotive Industry: Engine blocks, transmission housings, and structural components benefit from aluminium's lightweight and strength.
• Aerospace: Aircraft components such as brackets, housings, and connectors take advantage of aluminium's weight reduction capabilities.
• Electronics: Heat sinks, housings, and connectors are common die-cast aluminium products in the electronics sector.
• Consumer Goods: Aluminium die casting is used for durable and aesthetically pleasing products like cookware, lighting fixtures, and power tools.

Challenges and Considerations

While aluminium die casting is highly advantageous, it does come with challenges:

• Initial Tooling Cost: The development of precision dies is expensive, making it more suitable for large production volumes.
• Porosity Issues: Air trapped during the injection process can create porosity, affecting the strength and appearance of the casting. Advanced techniques like vacuum die casting can mitigate this issue.
• Design Constraints: While aluminium die casting allows for complex shapes, it requires careful design to avoid weak points or difficulties in ejection.

Parts of geometric model of die Casting

Before starting a die casting process a 3d model of the die is made. There are a number of geometric features to be considered when creating a parametric model of a die casting.

• Draft: Draft is the amount of taper or slope given to cores or other parts of the die cavity to permit easy ejection of the casting from the die casting die.
• Fillet: It is the curved juncture of two surfaces that would have otherwise met at a sharp corner or edge. Simply, fillets can be added to a die casting to remove undesirable edges and corners.
• Parting line: It represents the point at which two different sides of a mould come together. The location of the parting line defines which side of the die is the cover and which is the ejector.
• Bosses: They are added to die castings to serve as stand-offs and mounting points for parts that will need to be mounted. For maximum integrity and strength of the die casting, bosses must have universal wall thickness.
• Ribs: They are added to a die casting to provide added support for designs that require maximum strength without increased wall thickness.
• Holes and windows: Are require special consideration when die casting because the perimeters of these features will grip to the die steel during solidification. To counteract this effect, generous draft should be added to hole and window features.

Different Kind of Die Casting

This website shall remain a comprehensive guide to all the latest industry trends. And so is the case with this topic. Currently there are two different kinds of Aluminium Die Casting that can be done, both have their own pros and cons

• Aluminium High-Pressure Die Casing: As oppose to traditional method, this method uses forces liquid aluminium into high pressure die casting chambers filling them in a short amount of time. Thus, the outcome has a smoother surface.
• Aluminium Gravity Die Casting: This is the traditional method, liquid aluminium is poured into moulding chamber, and it settles into it through gravity. It is also known as Aluminium Low Pressure Die Casting. This method results into aluminium that is stronger.

Future Trends in Aluminium Die Casting

The industry is evolving with advancements in materials, process automation, and sustainability. Innovations such as high-pressure vacuum systems, improved die coatings, and integration with Industry 4.0 technologies are enhancing efficiency and product quality. Furthermore, the push toward lightweighting in automotive and aerospace industries is driving increased demand for aluminium die-cast components.

Conclusion

Aluminium die casting remains an indispensable process in modern manufacturing due to its efficiency, precision, and versatility. As industries continue to prioritize lightweight, durable, and high-performance components, aluminium die casting is poised to play an even more significant role in shaping the future of manufacturing.
